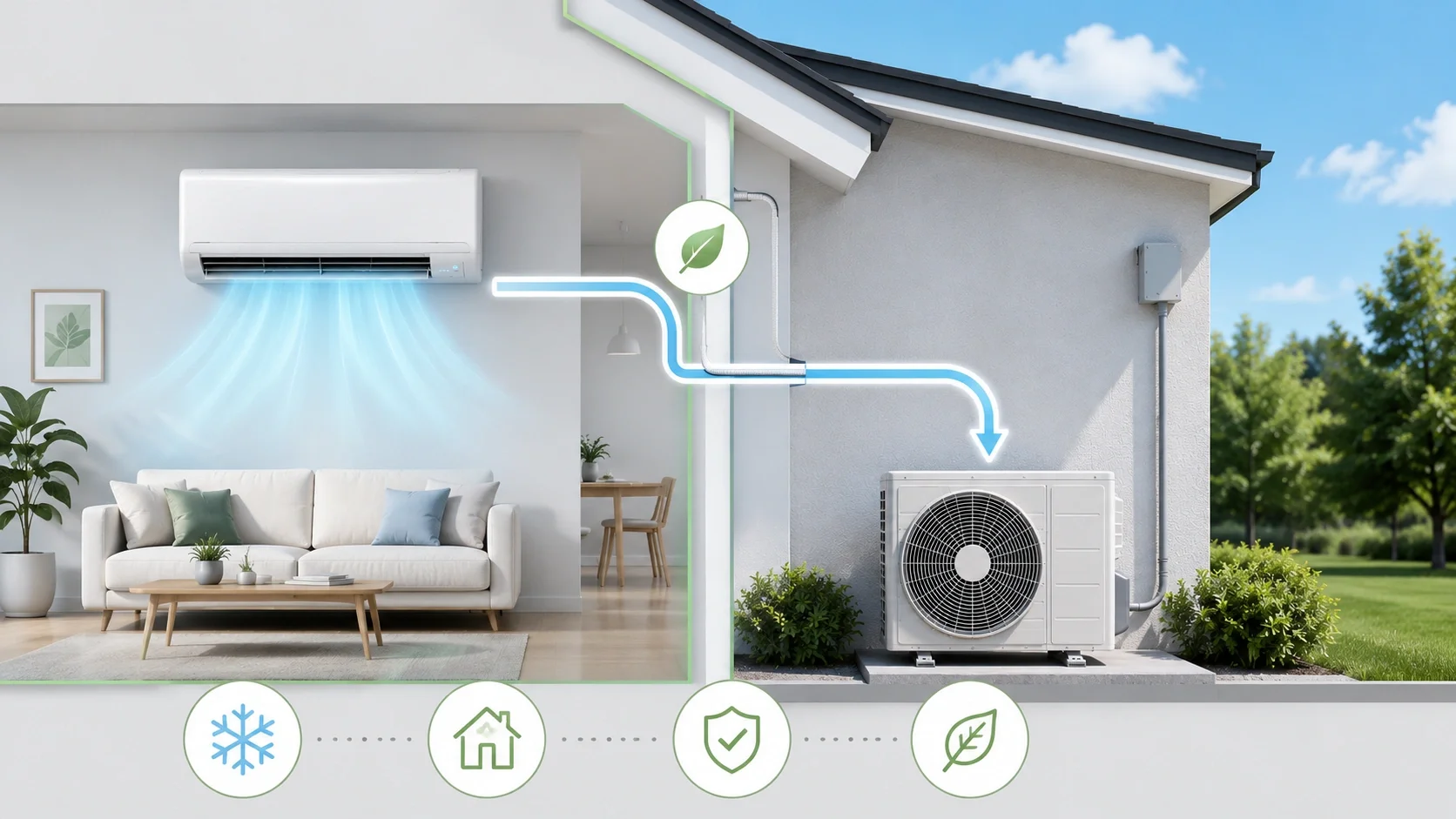

AC Indoor Outdoor Placement: Where & How to Install for Peak Performance
Correct placement = 30% more efficiency + longer lifespan. Learn the exact clearances, safety zones, and pro tips before your HVAC installation.
GET INSTALLATION CHECKLIST →📌 Why this matters: Even the most expensive central air conditioning or ductless mini-split AC will underperform if the indoor or outdoor unit is poorly located. This guide covers placement rules for all AC types — from window units to whole-home systems.
1. Outdoor Condenser Placement: Critical Rules
The outdoor unit (condenser) releases heat removed from your home. Poor airflow or surrounding obstacles force it to work harder, increasing electricity bills and causing premature compressor failure. Follow these mandatory clearance guidelines.
| Direction / Obstacle | Minimum Clearance | Why It Matters |
|---|---|---|
| Back of unit (against wall) | 12–18 inches (30–45 cm) | Allows proper heat dissipation |
| Side of unit (left/right) | 12 inches minimum | Air intake needs unrestricted flow |
| Top of unit (upward) | 60 inches (5 feet) clearance | Hot air rises – needs free exhaust path |
| Between two units (multi-zone) | 24 inches minimum | Prevents heat recycling between condensers |
| From walls, fences, shrubs | 24–36 inches recommended | Blocks recirculation and debris |
Best Outdoor Locations by AC Type
- Central AC & Packaged AC unit: Install on a concrete pad at ground level, away from bedroom windows (noise consideration). North or east side of house stays cooler.
- Ductless Mini-Split AC & Ducted Mini-Split: Wall-mounted bracket at least 4 inches from wall, elevated 12+ inches above ground (snow/rain protection).
- Window Air Conditioner & Portable Air Conditioner: For portable units, exhaust hose must vent directly outside with minimal bends. Window units need slight downward tilt toward outside for drainage.
- Through-the-Wall AC: Sleeve must be level and properly sealed – outdoor grille requires 12+ inches clearance from shrubs or fences.
2. Indoor Air Handler / Evaporator Placement
Indoor unit placement determines airflow distribution, thermostat accuracy, and comfort consistency. Whether you choose floor mounted AC, ceiling cassette, or traditional air handler, follow these rules.
General Indoor Placement Guidelines
- Install at least 7 feet above floor for wall-mounted units (mini-splits) to allow air circulation.
- Keep 6–8 inches clearance from ceiling for proper return air intake.
- Place Ceiling Cassette AC centrally in the room for even 360° airflow.
- For Ducted AC system, air handler should be in conditioned space (attic, basement, or utility closet) with access for filter changes.
- Thermostat should be on interior wall, 52–60 inches from floor, away from direct sunlight, drafts, or heat sources.
- Behind doors, above TVs or ovens, near registers or supply vents.
- Corner placement where airflow hits two walls (creates cold spots).
- Inside closets without proper return air grille – will starve the system.
Room-by-Room Placement Recommendations
Different rooms have unique requirements. For detailed guides, check rooms & spaces section. Here are key placement tips:
- Bedroom AC Guide: Avoid aiming airflow directly at the bed. For mini-splits, position unit on wall opposite the bed, or use swing mode.
- Living Room AC: High-wall placement works best. Ensure supply air flows along the longest path toward open areas.
- Basement AC: Place indoor unit where ceiling is highest. Consider a floor mounted AC if walls are masonry.
- Garage AC: Outdoor condenser must be protected from vehicle fumes and debris. Indoor unit avoid direct vehicle path.
- Home Office AC: Position unit away from desk to prevent direct cold air on neck/shoulders – use deflector if needed.
3. Refrigerant Line Set Length & Routing
The distance between indoor and outdoor units affects system efficiency and capacity. Most manufacturers specify maximum refrigerant line set lengths.
| AC System Type | Max Line Length (Standard) | Vertical Lift Limit |
|---|---|---|
| Mini-Split (single zone) | 50–100 ft (15–30m) | 30–50 ft |
| Multi-zone Mini-Split | 150–200 ft total | 50 ft max per zone |
| Central AC (split system) | 80–150 ft (depending on charge) | 20–30 ft (may need oil trap) |
| Packaged Unit (no line set) | N/A (ducts only) | N/A |
When routing line sets, avoid sharp bends (minimum radius 4 inches), protect lines from direct sunlight/UV, and never bury lines underground unless using specialized insulated casing. For outdoor units located above indoor unit (e.g., roof-mounted condenser for attic handler), install a P-trap oil return loop every 20 feet of vertical rise.
4. Electrical & Safety Clearances
Placement must comply with National Electrical Code (NEC) and local building codes. Violations can void warranty and cause safety hazards.
- Disconnect box: Within sight and within 50 feet of outdoor unit (NEC 440.14). Typically mounted on wall next to condenser.
- Clearance from gas meter / electric panel: Minimum 3 feet horizontally. Never place condenser directly below electric drop wires.
- Property line setback: Local codes require 5–10 feet from neighbor's property line for noise compliance.
- Window clearance: Do not place condenser directly under bedroom window if noise is a concern. Maintain 12 inches from operable windows for air circulation.
- Verify your home’s electrical panel has adequate amperage before final placement – long wire runs may require thicker gauge.
Permits & Professional Help
Relocating an outdoor unit or installing new line sets almost always requires a permit. Learn how to get AC permit in your area. For DIY enthusiasts, simple window/portable units don’t need permits, but split systems do. Always ask: do I need an electrician for AC? Yes, for any hardwired connection.
5. Special Placement Scenarios
Multi-Story Homes & Zoning
For multi-story home placement, install outdoor unit at ground level on sturdy pad. For second-floor indoor units, line set vertical rise must be calculated. Consider HVAC zoning systems with multiple indoor units to balance temperatures.
Homes Without Ductwork
If you have an older home without ducts, AC for older homes no ducts solutions like mini-splits or high-velocity systems work best. Place indoor units high on exterior walls to minimize line set lengths.
RV & Camper AC Units
RV Air Conditioner roof-mounted units require flat roof section with reinforced supports. Avoid placing under tree branches or low clearance structures. Portable RV units need proper exhaust porting.
Commercial Spaces
For restaurant AC or retail store AC, outdoor condensers often go on rooftops. Ensure structural engineers verify load capacity. Rooftop placement needs wind baffles and vibration isolators. Indoor cassette units work best for drop ceilings.
Final Placement Checklist Before Installation
- ✅ Outdoor condenser: 12–24″ clearance on all air intake sides, 5′ top clearance.
- ✅ No direct afternoon sun (add shade sail if unavoidable).
- ✅ Condenser pad is level, above grade (snow/rain protection).
- ✅ Indoor unit: 7′ floor clearance, no obstacles blocking airflow.
- ✅ Thermostat on interior wall away from heat sources/drafts.
- ✅ Refrigerant line set length within manufacturer spec, insulated properly.
- ✅ Electrical disconnect within sight, no code violations.
- ✅ Noise considerations: keep away from bedroom windows and neighbor property line.
- ✅ Permits obtained if required by local jurisdiction.
🏡 New construction or full replacement? Read our AC for new construction guide and replace vs repair cost comparison. Proper placement during construction saves thousands in future modifications.
After planning your placement, understand how to test new AC installation and register your AC warranty registration. Check also common installation mistakes to avoid. For energy optimization after placement, see energy saving tips AC and ideal AC temperature setting.
