Ducted Mini Split: The Complete Guide to Hidden Duct Cooling

Discover how a ducted mini split system delivers quiet, zoned comfort through concealed air handlers and short duct runs — and whether it is the right fit for your home.

Start Reading

What Is a Ducted Mini Split?

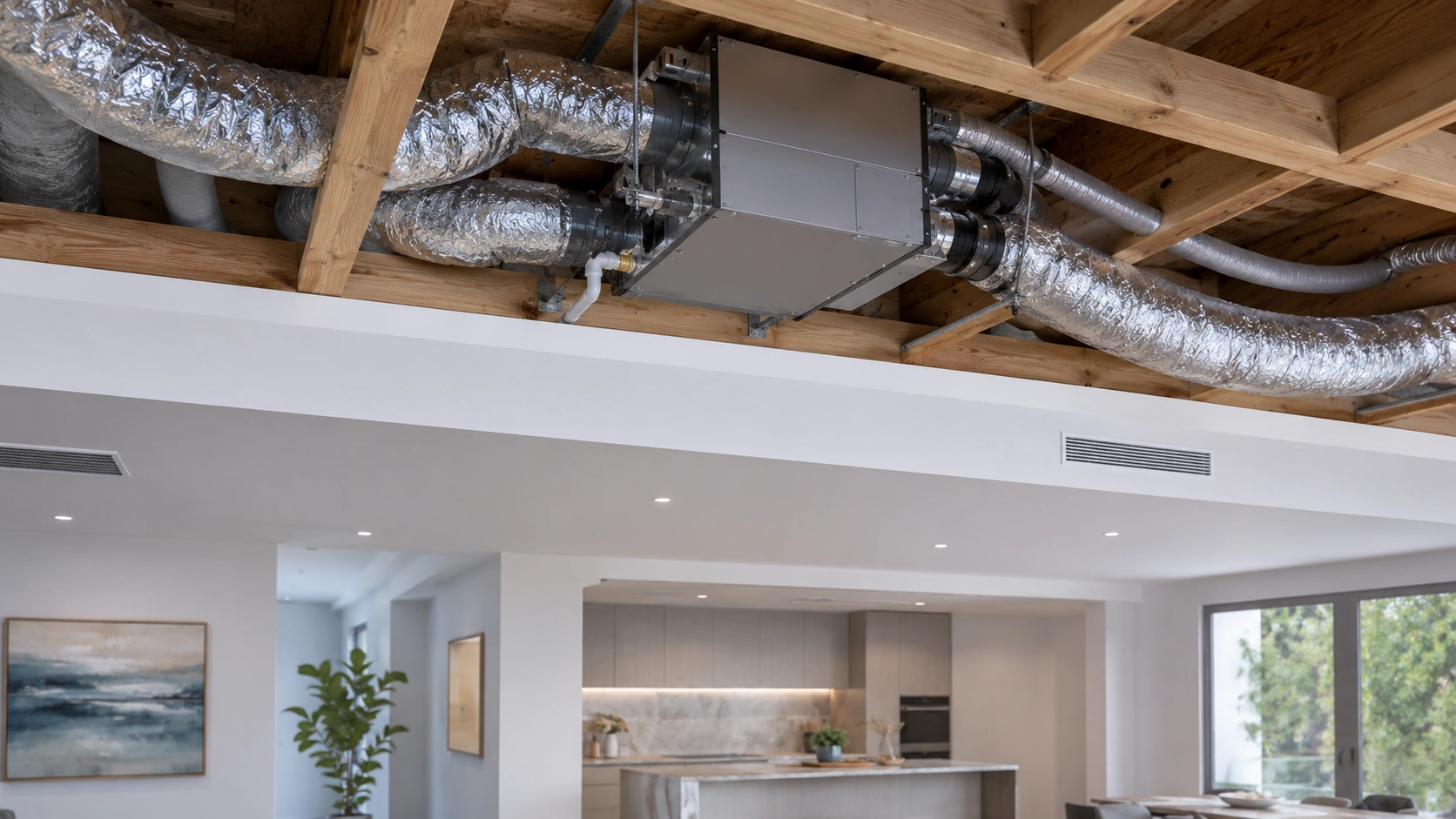

A ducted mini split is a split-system heat pump whose indoor air handler is hidden inside an attic, ceiling cavity, soffit, or mechanical closet, then connected to a small network of ducts that feeds conditioned air into one or more rooms. From the outside, the system looks similar to a conventional ductless mini split AC: an outdoor condenser paired with an indoor unit through refrigerant lines. The difference is that the indoor unit does not blow air directly into the room — it pushes treated air through ducts and out through discreet ceiling, wall, or floor registers.

This design sits between two familiar categories. It offers the zoned, inverter-driven efficiency of ductless equipment, but it distributes air the way a central system does. That makes it attractive for homeowners who want invisible indoor hardware, even room temperatures, and the ability to cool several connected spaces from a single air handler.

Quick definition: a ducted mini split is a concealed-duct, inverter-driven heat pump system with a short duct network serving one or several rooms from a hidden air handler.

How a Ducted Mini Split Works

The system follows the same refrigeration cycle as any air conditioner or heat pump. The outdoor condenser rejects heat, the indoor air handler absorbs heat from the room air, and refrigerant carries the energy between them. What sets the ducted version apart is the air distribution stage.

  1. Air return: room air is drawn through a return grille into the concealed air handler.
  2. Conditioning: the air passes over the evaporator coil, where it is cooled and dehumidified (or warmed in heating mode).
  3. Distribution: a variable-speed blower pushes the conditioned air through short, insulated duct runs to supply registers in each room.
  4. Modulation: an inverter compressor and variable-speed fan adjust output continuously instead of cycling on and off, which smooths temperature swings and improves part-load efficiency.

Because the air handler is concealed and the ducts are short, a ducted mini split avoids the long, leak-prone trunk-and-branch ductwork typical of full central systems. It also avoids the wall-mounted indoor head associated with ductless mini split heat pumps, which some homeowners find visually intrusive.

Types of Concealed Duct Mini Splits

Ducted mini splits are not a single product. They come in several form factors, each suited to different building layouts.

Standard

Low-Static Ducted Air Handler

Designed for short duct runs and low resistance. Common in attics and closets serving one or two rooms. Quiet and compact for residential use.

Mid-Range

Medium-Static Ducted Air Handler

Built for longer or more branched duct networks. Useful when a single air handler serves several rooms or when the mechanical closet is farther from the supply registers.

High-End

High-Static Ducted Air Handler

Handles higher duct resistance and larger airflow volumes. Typically specified when duct routing is complex or when the system must condition a larger zone.

Multi-Zone

Multi-Zone Ducted Systems

One outdoor condenser connected to two or more ducted indoor air handlers, each serving a separate zone. Allows independent temperature control across areas.

Hybrid

Mixed Ducted and Ductless

One outdoor unit paired with a ducted air handler for main living areas and wall-mounted heads for bedrooms or additions. A flexible approach for phased remodels.

Ducted vs Ductless vs Central Air

Choosing between a ducted mini split and its alternatives comes down to how air is distributed, how much ductwork is acceptable, and how much control you want over individual rooms.

Category Ducted Mini Split Ductless Mini Split Central AC
Air distribution Short concealed duct runs to registers Direct blow from wall or ceiling head Full trunk-and-branch duct system
Indoor visibility Hidden air handler; only registers show Visible wall or ceiling unit Hidden air handler; registers visible
Ductwork required Minimal, short runs None Extensive
Zoning flexibility Good; multi-zone options available Excellent; one head per zone Limited unless dampers are added
Ideal for Homes with attic or ceiling space and a desire for concealed hardware Single rooms, additions, historic homes without cavities Homes with existing ductwork serving the whole house
Installation complexity Moderate; needs concealed space and duct routing Low to moderate; no duct routing High; full duct design and installation

For readers comparing broader categories, our overview of ductless mini split systems and the guide to ductless heat pump systems explain where direct-blow equipment fits. If a full duct system is already in place and you are weighing upgrades, the ductless mini split installation breakdown offers useful context on how scope affects project planning.

Key Benefits and Trade-offs

Benefits

  • Concealed indoor hardware: the air handler and ducts are out of sight, leaving only unobtrusive registers in each room.
  • Even temperature distribution: ducted delivery spreads conditioned air across a room better than a single point-source head.
  • Inverter efficiency: variable-speed compressors and fans match output to demand, which supports strong part-load efficiency ratings.
  • Heating and cooling in one system: most ducted mini splits are heat pumps, so they handle shoulder-season heating as well as summer cooling.
  • Less duct loss than central systems: short, insulated duct runs in conditioned space reduce the losses associated with long attic duct networks.
  • Multi-zone capability: one outdoor condenser can serve several ducted air handlers, each with its own thermostat.

Trade-offs

  • Requires concealed space: you need attic headroom, a ceiling void, a soffit, or a mechanical closet for the air handler and duct routing.
  • Duct quality matters: poorly sealed or uninsulated ducts erode the efficiency advantage. Duct design and installation quality are critical.
  • Moderate installation complexity: more involved than a wall-mounted ductless head, though far less extensive than full central ductwork.
  • Access for service: the concealed air handler needs a service access panel, which should be planned during design.
  • Not ideal for every layout: homes without usable cavities may be better served by direct-blow ductless equipment.

Editorial note: ducted mini splits reward careful planning. The two variables that most affect satisfaction are correct capacity selection and airtight, insulated duct installation.

Sizing and Capacity Guidance

Capacity selection follows the same logic as any air conditioner: match the system to the heat load of the space, not to the floor area alone. For a ducted mini split, you also account for duct losses and the static pressure the air handler must overcome.

Factors that influence the required capacity include:

  • Conditioned floor area and ceiling height
  • Insulation levels in walls, ceilings, and floors
  • Window area, glazing type, and solar exposure
  • Occupancy and internal heat gains from appliances and lighting
  • Local climate design conditions
  • Duct length, insulation, and leakage

A room-by-room load calculation is the most reliable method. If you are estimating for a single open area, our guide to sizing an air conditioner walks through the practical steps. For whole-home planning, the article on AC sizing for a whole home explains how to combine zone loads into a system selection.

Oversizing is a common mistake. An oversized ducted mini split short-cycles, dehumidifies poorly, and can feel clammy even while cooling. Inverter modulation softens the problem compared with single-stage equipment, but correct sizing still matters for comfort and efficiency.

Installation Requirements

Installing a ducted mini split involves refrigerant work, condensate management, duct routing, and electrical connections. The main planning considerations are:

  • Air handler location: attic, ceiling void, soffit, or mechanical closet with enough room for the unit, service access, and duct connections.
  • Duct routing: short, direct runs to supply registers with minimal bends and proper insulation. Return air needs a clear path back to the air handler.
  • Condensate drainage: a slope to a drain or condensate pump, routed to avoid freezing in cold attics.
  • Refrigerant lines: a line set between the indoor and outdoor units within the manufacturer's allowable length and elevation limits.
  • Electrical supply: a dedicated circuit sized to the outdoor unit, with a disconnect near the condenser.
  • Permits and inspection: most jurisdictions require a permit for refrigerant and electrical work. Confirm local requirements before work begins.

Because ducted mini splits sit between ductless and central systems, installation scope varies widely. For a detailed look at how project scope affects planning, see the guide to mini split installation and the broader breakdown for ducted mini split system installation.

Efficiency and Ongoing Operation

Ducted mini splits are typically inverter-driven and rated with SEER2 for cooling and HSPF2 for heating. Because the compressor modulates instead of cycling, the system spends more time at efficient part-load conditions. That said, duct losses can reduce delivered efficiency if the installation is not airtight.

Practical steps to protect efficiency:

  • Seal all duct joints with mastic or foil tape, and insulate ducts that pass through unconditioned space.
  • Keep return air paths unobstructed and sized to the air handler's airflow.
  • Replace or clean filters on schedule; a restricted filter raises static pressure and reduces airflow.
  • Set a consistent thermostat schedule and avoid large setpoint swings.
  • Schedule annual professional service to check refrigerant charge, condensate drainage, and coil condition.

If your home already has ducts, comparing ducted mini split efficiency with a well-sealed central system is worthwhile. Our article on high-SEER air conditioners explains how efficiency ratings translate into real-world operation.

How to Choose the Right Ducted Mini Split

Selection comes down to matching the form factor to your building, then matching capacity to your load calculation.

Essential Tier

Single-Zone Low-Static Systems

Best for one open living area or a pair of connected rooms with attic or ceiling access. Simple duct routing and straightforward controls.

Balanced Tier

Multi-Zone Ducted Systems

Best for homes that want independent temperature control across several rooms from one outdoor condenser. Requires careful zone load planning.

Top-Tier

High-Static and Hybrid Configurations

Best for complex layouts, longer duct routes, or mixed ducted and ductless setups. These configurations demand professional design and commissioning.

A useful decision sequence:

  1. Confirm there is viable concealed space for the air handler and ducts.
  2. Complete a room-by-room load calculation.
  3. Choose low-, medium-, or high-static air handler based on duct resistance.
  4. Decide between single-zone and multi-zone based on how many areas need independent control.
  5. Verify service access and condensate routing before finalizing the layout.
  6. Select a qualified installer who will commission the system and document airflow and charge.

Homeowners weighing a ducted mini split against a full central system should also read the guide to ductless versus ducted AC for a broader comparison of distribution strategies.

Ready to Compare Ducted Mini Split Options?

Review the recommended systems below to find a configuration that matches your rooms, layout, and efficiency priorities.

See Recommended Systems

Frequently Asked Questions

What is a ducted mini split system?

A ducted mini split is a ductless-style heat pump system whose indoor air handler is concealed in an attic, ceiling void, or closet and distributes conditioned air through short runs of ductwork to one or more rooms.

How is a ducted mini split different from a ductless mini split?

Both use the same outdoor condenser and inverter technology. The difference is the indoor unit: a ductless mini split blows air directly from a wall or ceiling cassette, while a ducted mini split connects to hidden ducts that deliver air to registers in each room.

Do ducted mini splits require existing ductwork?

No. Ducted mini splits use short, flexible duct runs that can be installed in an attic, soffit, or ceiling cavity. They can work in homes without a full central duct system, though adequate space for the air handler and duct routing is required.

How do I size a ducted mini split?

Capacity is matched to the conditioned floor area, ceiling height, insulation, window area, climate zone, and duct losses. A room-by-room load calculation is the most reliable method before selecting an indoor air handler and outdoor condenser pairing.

Are ducted mini splits energy efficient?

Yes. Ducted mini split systems typically use inverter-driven compressors and variable-speed fans, and many models carry high SEER2 and HSPF2 ratings. Efficiency depends on duct insulation, sealing, and correct sizing.
