AC Refrigerant Cycle: Complete Guide to How It Works
Understand the heart of your air conditioner: the refrigerant cycle. Learn how compressors, condensers, expansion valves, and evaporators work together to keep you cool.
Explore the Cycle →Why understanding the refrigerant cycle matters: Knowing how refrigerant moves heat from inside your home to the outside helps you make smarter buying decisions, troubleshoot problems, and appreciate the efficiency ratings like SEER and EER. This knowledge directly impacts your comfort and energy bills.
What Is the Refrigerant Cycle?
The AC refrigerant cycle (also called the vapor-compression refrigeration cycle) is a continuous loop that transfers heat from inside your home to the outdoors. Refrigerant—a special fluid with a very low boiling point—changes between liquid and gas states as it absorbs and releases heat. Modern air conditioners, whether central AC, ductless mini-split AC, or window air conditioner, all rely on this same fundamental principle. Understanding this cycle helps you appreciate why proper sizing, BTU calculation, and regular maintenance are critical for efficiency and longevity.

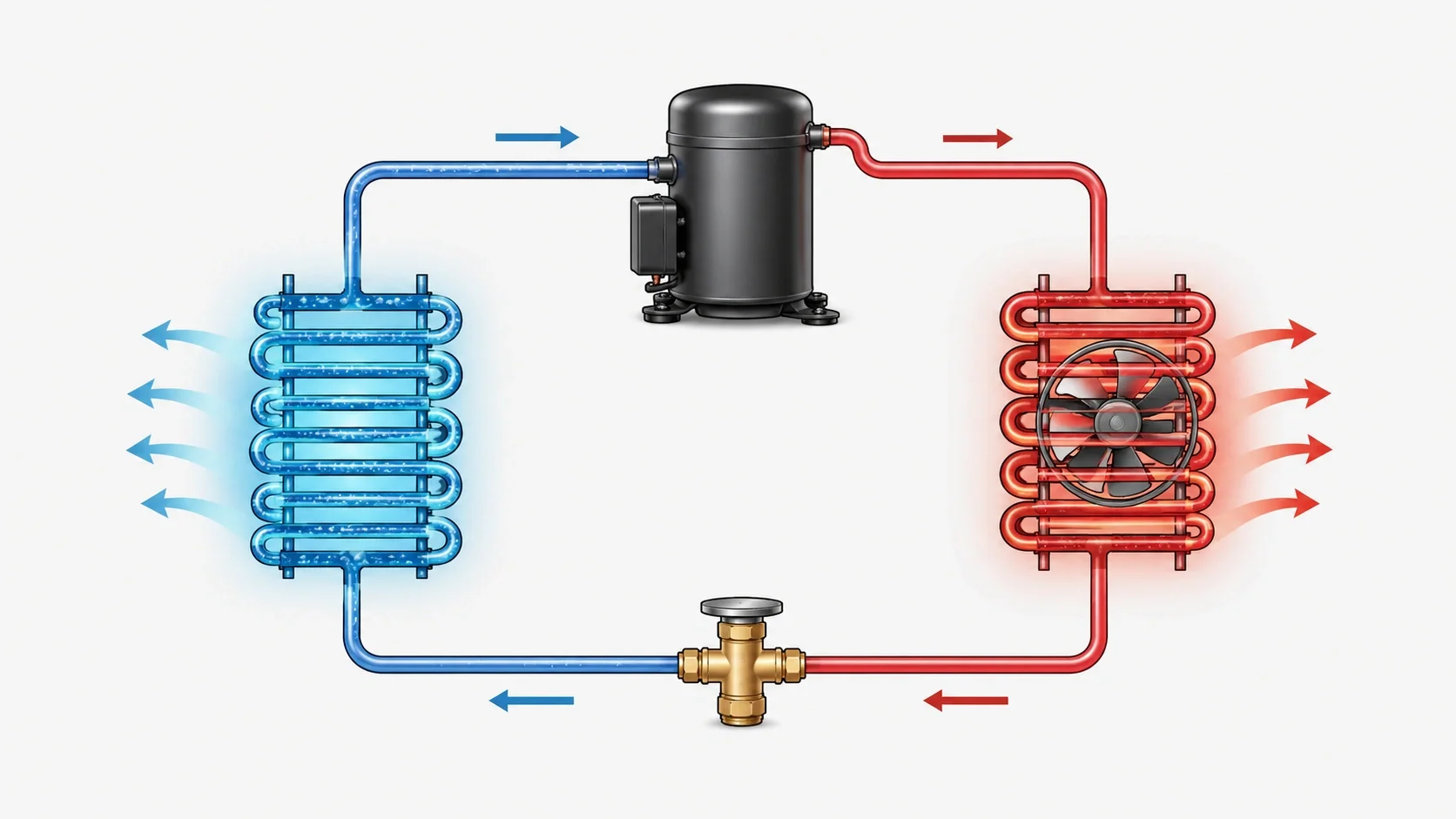

4 Stages of the Refrigerant Cycle
The compressor (located in the outdoor unit) takes low-pressure, low-temperature refrigerant gas and compresses it. This increases both pressure and temperature dramatically—the refrigerant becomes a hot, high-pressure gas (about 120–140°F). The compressor is often called the "heart" of the system. For homes with inverter AC technology, the compressor can vary speed to match cooling demand, improving efficiency.
Hot refrigerant gas flows into the condenser coil (also outdoors). A fan blows outdoor air across the coils, causing the refrigerant to release its heat and condense into a high-pressure liquid. This is why you feel hot air blowing from your outdoor unit. The efficiency of this step affects the overall ENERGY STAR rating. Systems with larger condenser coils or two-stage AC designs excel here.
The high-pressure liquid refrigerant passes through an expansion valve (or metering device). This valve suddenly reduces pressure, causing the refrigerant to expand and cool rapidly. It emerges as a cold liquid-vapor mixture (around 40–50°F). Some modern units use electronic expansion valves (EEV) for precise control, especially in variable speed AC systems and heat pumps.
The cold refrigerant enters the evaporator coil (inside your home). A blower pushes warm indoor air across the coil. The refrigerant absorbs heat from the air, evaporating back into a low-pressure gas. The now-cool air is distributed through ductwork (in central systems) or directly into the room (mini-splits, window units). The refrigerant gas returns to the compressor to restart the cycle.
How Heat Transfer Works: A Deeper Look
Refrigerants like R-410A (and newer low-GWP refrigerants such as R-32 and R-454B) have unique thermodynamic properties: they boil at very low temperatures. Inside the evaporator, the refrigerant boils at around 40°F, even though room air is 75°F. This temperature difference drives heat absorption. When we talk about SEER rating or SEER2 efficiency standards, the refrigerant cycle's effectiveness is being measured. Inverter-driven systems maintain optimal pressure differences across the cycle, reducing wasted energy.
If any component malfunctions—like a dirty condenser coil, low refrigerant due to a leak, or a failing compressor—the entire cycle is disrupted. This leads to AC not cooling, higher electricity bills, or even frozen evaporator coils. That's why professional annual maintenance is recommended.
Modern Refrigerants & Regulatory Changes
The HVAC industry is undergoing a massive shift due to environmental regulations. Older systems used R-22 (Freon), now phased out. Today, most new units use R-410A, but that’s also being phased down. Starting 2026–2027, new refrigerants like R-32 and R-454B (A2L class, mildly flammable) are becoming standard. These have lower global warming potential. Learn about the R410A phase out and new refrigerant standards to future-proof your purchase. When buying a new central air conditioner or mini split, check which refrigerant it uses — future serviceability may depend on it.
Component Comparison & Costs
| Component | Function | Typical Replacement Cost |
|---|---|---|
| Compressor | Pressurizes refrigerant gas | $800–$2,500 (including labor) |
| Condenser Coil | Releases heat outdoors | $600–$1,800 |
| Evaporator Coil | Absorbs indoor heat | $500–$1,500 |
| Expansion Valve (TXV/EEV) | Controls refrigerant flow | $250–$600 |
| Refrigerant Recharge (R-410A) | Restore proper charge | $200–$500 per lb (depending on leak size) |
Costs are estimates and vary by region, contractor, and equipment brand. For accurate quotes, always consult a licensed HVAC contractor.
Signs Your Refrigerant Cycle Has Issues
Recognizing refrigerant cycle problems early can save you thousands. Common symptoms include:
- Hissing or bubbling sounds – potential refrigerant leak.
- Ice forming on evaporator coils or refrigerant lines – often caused by low charge, dirty coils, or restricted expansion valve.
- Warm air from vents while the system runs – insufficient heat absorption.
- Higher than normal electric bills – the compressor works harder to compensate.
- Short cycling – system turns on and off frequently, often due to improper charge or oversized equipment (read about AC too big or too small).
If you suspect a refrigerant leak, never attempt DIY repairs; EPA regulations require certified technicians to handle refrigerants. Also, adding refrigerant without fixing the leak is illegal and wastes money.
Refrigerant Cycle in Different AC Types
The basic cycle is identical across all AC types, but configurations differ:
- Central AC & Packaged AC Unit: The compressor and condenser are outdoors (or in a rooftop package), evaporator is indoors with air handler.
- Ductless Mini-Split AC: Same cycle, but no ducts; multiple indoor units connect to one outdoor condenser, each with its own expansion valve.
- Window Air Conditioner: All components (compressor, condenser, expansion, evaporator) are in a single chassis. The cycle is physically shorter but identical.
- Portable Air Conditioner: Similar to window units, but hot exhaust air must be vented via a hose.
- RV Air Conditioner: Compact version, often uses rooftop-mounted design with same cycle principles.
When choosing an AC type for your home, understanding that all rely on the same refrigerant cycle helps you focus on features like inverter technology, noise levels, and zoning capabilities.
You’re Now Ready to Choose Your Next AC
After understanding the refrigerant cycle, you can confidently evaluate efficiency ratings, ask contractors the right questions, and select an air conditioner that balances performance with energy savings. Look for ENERGY STAR certified models with high SEER2 ratings (15+ SEER2 for southern climates, 14+ for northern). If you live in a region with cold winters, consider a heat pump system which uses a reversing valve to flip the refrigerant cycle, providing both cooling and heating.
