Ceiling Cassette AC: The Ultimate Guide
Sleek, powerful, and discreet — perfect for modern homes, open-plan living, and commercial spaces. Learn everything before you buy.
Explore Top Picks →⭐ Why consider a ceiling cassette AC? Unlike traditional ductless mini-split AC wall units, a ceiling cassette is mounted flush into the ceiling, offering 360° or 4-way airflow while preserving wall space. Perfect for rooms with limited wall area or where aesthetics matter most.
What Is a Ceiling Cassette AC?

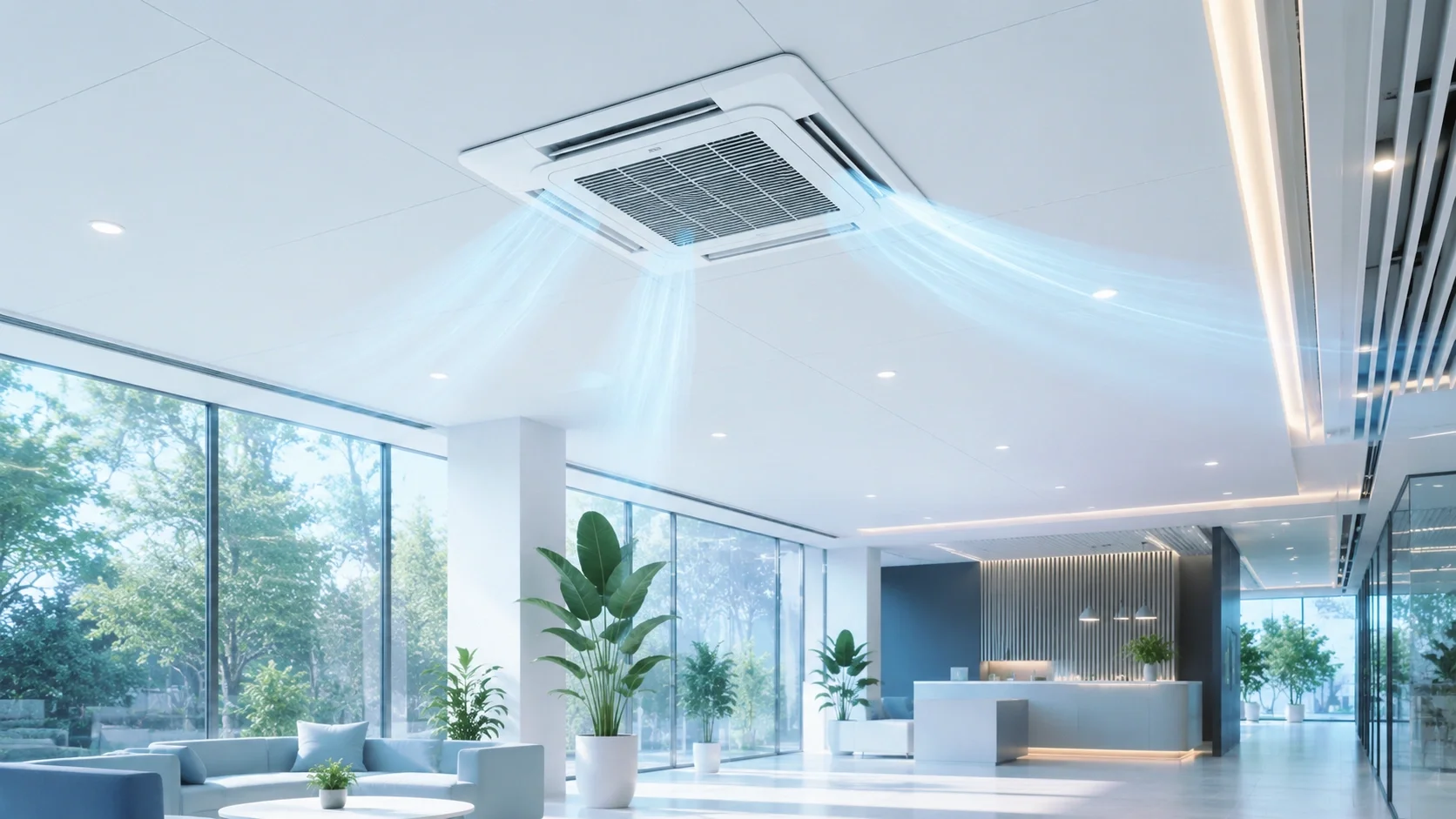

A ceiling cassette air conditioner is a type of ductless HVAC system where the indoor unit is installed above a drop ceiling or between joists, leaving only a sleek, low-profile grille visible from the room. It connects to an outdoor condenser via refrigerant lines. Most models offer 4-way adjustable louvers that distribute air evenly in multiple directions — eliminating hot or cold spots. This makes them ideal for large living areas, office lobbies, retail stores, and modern residential designs.
Compared to conventional central air conditioning systems, ceiling cassettes require no extensive ductwork, reducing energy losses by up to 30%. They are also quieter than many window air conditioner units and provide superior temperature uniformity. For homeowners seeking zoning flexibility, a HVAC zoning systems approach using multiple cassettes offers individual room control.
Key Benefits of Ceiling Cassette AC
🔇 Ultra-Quiet Operation
Indoor noise levels as low as 25–32 dBA — quieter than a whisper. Ideal for bedrooms, libraries, and executive offices.
🌬️ 360° Airflow
4-way or 3D airflow eliminates. Perfect for square or rectangular rooms up to 600 sq ft per unit.
🎨 Discreet Design
Only the grille is visible — blends with any ceiling style. No bulky wall units or floor-standing equipment.
⚡ Inverter Efficiency
Most modern cassettes feature inverter AC technology, reducing energy use by 40% compared to fixed-speed systems.
📱 Smart Control
Wi-Fi enabled with AC with Wi-Fi & smart control, compatible with Alexa, Google Home, and scheduling apps.
🛠️ Easy Maintenance
Removable washable filters accessible from below. No need to access ceiling cavity for routine cleaning.
How to Size a Ceiling Cassette AC (BTU Guide)
Proper sizing is critical. Use our BTU calculator by room size or follow these guidelines: For a standard 8–9 ft ceiling, multiply the room’s square footage by 20–25 BTU. A 12,000 BTU cassette covers ~400–550 sq ft, while a 18,000 BTU unit handles up to 800 sq ft. Larger open-plan areas may need 24,000–36,000 BTU. Always consider factors like ceiling height, sun exposure, and number of windows. How to size an air conditioner also depends on insulation quality — over-sizing leads to short cycling and humidity issues.
📐 Quick Sizing Reference (Ceiling Cassette):
• 9,000 BTU – up to 350 sq ft (small offices, bedrooms)
• 12,000 BTU – 400–550 sq ft (living rooms, studios)
• 18,000 BTU – 550–800 sq ft (open kitchens, conference rooms)
• 24,000 BTU – 800–1,200 sq ft (commercial spaces, large lofts)
• 30,000–36,000 BTU – 1,200–1,800 sq ft (restaurants, gyms)
SEER Ratings & Energy Efficiency
When selecting a ceiling cassette AC, prioritize high SEER rating (Seasonal Energy Efficiency Ratio). Today’s best cassette systems offer SEER ratings from 18 to 25+. For compliance with new DOE standards, look for SEER vs SEER2 (DOE standards) labels. Higher SEER means lower electric bills. Additionally, many models feature ENERGY STAR certification — check our ENERGY STAR certified AC guide. If you also need heating, choose a model with a heat pump and check HSPF rating (Heating Seasonal Performance Factor).
Ceiling Cassette vs Other AC Types
| AC Type | Aesthetics | Installation Complexity | Ideal For | Typical Price Range (Unit + Install) |
|---|---|---|---|---|
| Ceiling Cassette | Excellent (flush mount) | Moderate (needs ceiling space) | Modern homes, offices, retail | $1,800–$4,500 |
| Ductless Mini-Split | Good (wall-mounted) | Low to moderate | Add-on rooms, garages | $1,200–$3,500 |
| Central AC | Hidden (ducts) | High (needs ductwork) | Whole homes with existing ducts | $4,000–$12,000 |
| Window AC | Poor (blocks window) | Low | Temporary/rental cooling | $200–$800 |
| Portable AC | Fair (floor unit) | Very low | Spot cooling | $300–$900 |
Installation Requirements & Cost Breakdown
Installing a ceiling cassette AC involves mounting the indoor unit between ceiling joists, running refrigerant lines, drain pipe, and electrical wiring to the outdoor condenser. Professional installation is highly recommended. Expect labor costs between $800–$2,500 depending on complexity. Before installation, check home electrical panel capacity — most cassettes need 208/230V. You may also require a permit; read do I need a permit for AC for local rules. For multi-zone setups, consult a licensed contractor — see how to choose HVAC contractor.
✅ Pre-Installation Checklist
- Ceiling space depth: at least 9–12 inches for the unit body.
- Access for refrigerant lines: distance to outdoor unit ≤ 50 ft for optimal efficiency.
- Drainage slope: ensure condensate drain flows correctly.
- Electrical: dedicated circuit with correct amps and breaker size for AC.
- Check refrigerant line set length and insulation quality.
Ideal Rooms & Spaces for Ceiling Cassette AC
Due to their ceiling-mounted design and multi-directional airflow, cassette units excel in:
- Living room AC – even distribution in open floor plans.
- Bedroom AC guide – ultra-quiet operation for undisturbed sleep.
- Home office AC – professional look without wall clutter.
- Restaurants & retail stores – see restaurant AC and retail store AC tips.
- Conference rooms & gyms – gym AC benefits from powerful air throw.
Maintenance & Common Issues
Keeping your cassette AC in top shape is easy. Clean the washable filters every 4–6 weeks using a vacuum or mild soap. Inspect the condensate drain annually to avoid clogs. If the unit AC not cooling solution occurs, check for dirty filters or low refrigerant. For unusual sounds, refer to AC making noise solution. For water leakage, see AC leaking water solution. Schedule professional maintenance every 12–18 months — typical annual service cost ranges from $150–$300.
📘 Deepen Your Knowledge: Learn how these systems work: how an AC works and specifically how inverter AC works. If you are comparing alternatives, read our ductless vs ducted AC analysis and heat pump vs air conditioner guide.
Energy Saving Tips + Smart Thermostat Integration
Maximize efficiency by pairing your ceiling cassette with a programmable thermostat. Use programmable thermostat tips to set schedules. Combine with ceiling fan with AC to raise the thermostat setting 4°F without comfort loss. Also check for HVAC tax credits & rebates — many high-SEER cassettes qualify for federal incentives. For long-term savings, reduce AC electricity bill with proper insulation and sealing.
Before You Buy: Ceiling Cassette AC Checklist
- Measure ceiling cavity depth (minimum 9 inches).
- Choose between single-zone (one cassette) or multi-zone (multiple cassettes + one outdoor unit).
- Confirm SEER2 rating: 18+ recommended for energy savings.
- Check warranty: parts (5–10 years) and compressor (7–12 years).
- Read verified customer reviews about noise levels and cooling uniformity.
- Get at least 3 installation quotes from licensed HVAC pros.
- Understand the difference between 110V vs 240V air conditioner — larger cassettes require 240V.
Now that you're fully informed, explore the recommended ceiling cassette AC models below. These products are selected based on efficiency, reliability, and real-world performance.
