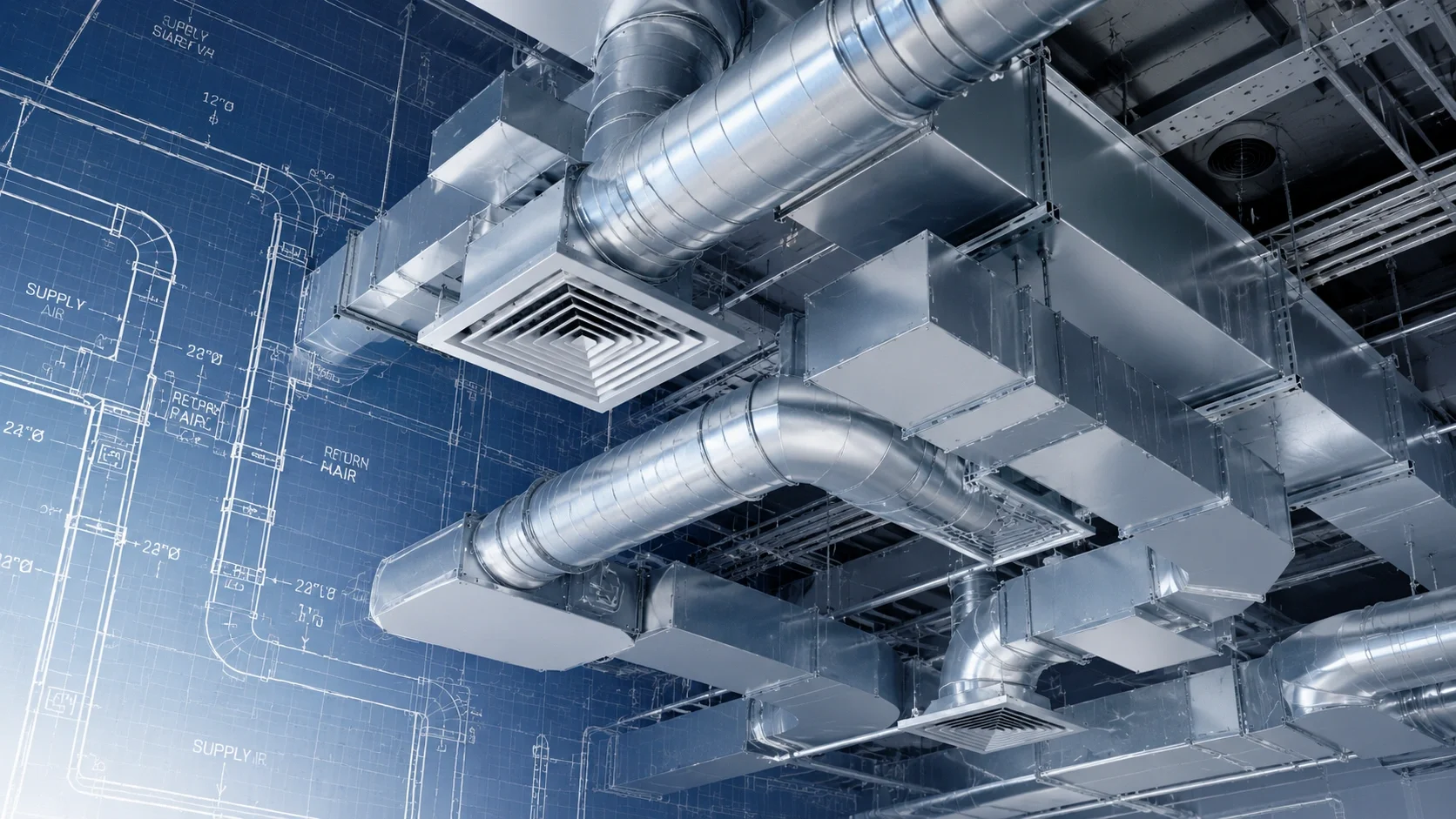

Ductwork Design Guide: Layout, Sizing & Airflow

Learn the principles that separate a quiet, balanced duct system from one that wastes energy and leaves rooms uncomfortable.

Explore the Guide

Why ductwork design matters: The air handler and condenser get most of the attention, but the duct system determines whether that equipment actually delivers comfort. A perfectly sized air conditioner connected to an undersized, leaky, or poorly routed duct network will underperform in every room it serves.

This guide walks through the design logic professionals use: how to plan layout, how to size trunks and branches, how static pressure drives airflow decisions, and which mistakes repeatedly show up in residential installations. It is written for homeowners and serious DIY researchers who want to evaluate a contractor's proposal or understand why an existing system struggles.

If you are still deciding on the equipment itself, our overview of the different types of air conditioning for homes is a useful starting point. For homes without existing ducts, ductless mini-split systems sidestep the duct design problem entirely and are often the better answer.

Ductwork Design Fundamentals

Every duct system performs three jobs: it delivers conditioned air at the right volume, distributes that air evenly, and does so quietly and without excessive energy loss. The design decisions that follow all serve those goals. The single most important constraint is available static pressure — the amount of resistance the blower can overcome. Every length of duct, every elbow, every register, and the filter itself consume a share of that budget.

A design is considered sound when the total external static pressure at the air handler stays within the equipment's rated range, typically around 0.5 inches of water column for many residential systems, though equipment documentation should always be the authority. When the design pushes past that figure, airflow drops across the entire system, and the room farthest from the blower suffers first.

Airflow First

Required airflow in cubic feet per minute is derived from the heating and cooling load, not from rule-of-thumb guesses. Size ducts to carry that airflow, not the other way around.

Keep Runs Short

Every extra foot of duct and every additional fitting adds resistance. Shorter, more direct runs preserve static pressure for the registers that need it.

Minimize Fittings

Tight 90-degree elbows and abrupt transitions are major sources of pressure drop. Sweeping turns and gradual transitions cost less airflow.

Seal Everything

Leaky joints in unconditioned space waste capacity and pull in unconditioned air. Sealing is not an optional finishing step; it is part of the design.

Balance Supply and Return

Return air volume must match supply air volume. Undersized returns create negative pressure and starve the system of the air it needs to move.

Design for Noise

High velocity in tight ducts is loud. Sizing branches for lower velocity near sleeping and living areas is a design decision, not an afterthought.

Planning the Duct Layout

Layout planning starts with the equipment location and the room-by-room load calculation. The goal is a trunk-and-branch arrangement that reaches every room with the shortest practical runs, while keeping the number of fittings low and the branches evenly loaded.

Step-by-step layout process

  1. Determine room-by-room airflow. Convert each room's sensible load into required cubic feet per minute. Rooms with large windows or western exposure will need a larger share than their floor area alone suggests.
  2. Place the air handler centrally. A central location shortens the longest run and reduces the total equivalent length of the system. Basements, closets, and attics are common locations, each with trade-offs for access and insulation.
  3. Sketch the trunk route. The main trunk should run in a relatively straight line through the core of the conditioned space, with branches peeling off toward each room. Avoid routing the trunk through unconditioned attics or crawlspaces when possible.
  4. Position supply registers. Place supply registers to throw air along exterior walls and across window areas, countering heat gain and heat loss. Avoid blowing directly onto occupants in seating areas.
  5. Position return grilles. Returns should be located to draw air from the same pressure zone the supplies serve. A central return works in open plans; individual room returns are more reliable for closed bedrooms with doors.
  6. Count equivalent length. Assign an equivalent-length value to each fitting and straight run. Total equivalent length feeds directly into the friction-rate sizing method described below.
  7. Verify with a static pressure budget. Sum the pressure drops of the filter, coil, supply trunk, branches, and return path. If the total exceeds the blower's rated capacity, revise the layout before installation begins.

For a multi-zone home where different areas need independent control, a zoning approach with motorized dampers may be more appropriate than a single balanced system. The principles are the same, but each zone's duct and damper must be sized for the airflow it will actually receive when other zones are closed. Reviewing a dedicated zoning reference before committing to a layout is worthwhile.

Duct Sizing Methods Compared

Three sizing methods dominate residential and light commercial design. Each produces a workable system, but they optimize for different outcomes. The table below summarizes how they differ in practice.

Sizing Method Tier of Precision What It Optimizes Typical Use Limitations
Friction rate (equal friction) Standard Balanced pressure drop per unit length across the system Most residential trunk-and-branch designs Requires accurate equivalent length totals
Velocity reduction Standard Lower noise by capping air speed in each duct segment Bedrooms, home theaters, noise-sensitive spaces Can produce larger ducts and more material
Static regain Advanced Recovering velocity pressure at each branch takeoff Larger systems with many branches More complex calculations, less common in homes

In practice, many residential designers use the friction-rate method with a target of roughly 0.1 inches of water per 100 feet of equivalent length, then adjust specific branches for velocity where noise is a concern. Whatever method is chosen, the result must be checked against the blower's available static pressure and the total airflow the equipment is rated to deliver.

Why velocity matters for comfort

Air moving too fast through a branch duct produces whistling at the register and a draft that occupants notice immediately. Air moving too slowly may not reach the far end of the room. Recommended velocities vary by location: lower velocities near sleeping areas, moderate velocities in main living spaces, and higher velocities are acceptable only in trunk runs that terminate in a plenum or diffuser designed for them. The designer's job is to keep each segment within its intended band.

Static Pressure: The Diagnostic That Explains Everything

If you learn one measurement from this guide, make it external static pressure. Measured with a manometer at the air handler, it is the sum of resistance from the return path, filter, coil, supply trunk, branches, and registers. When a system is not delivering airflow, the static pressure reading tells you whether the ductwork, the filter, or the coil is responsible.

A system that measures well above its rated static pressure is working too hard. The blower moves less air than designed, the coil may freeze in cooling mode, and the compressor runs longer than necessary. Remediation usually involves opening up restrictive elements: a larger filter, a less restrictive return path, or replacing undersized trunk sections. A house that is not cooling from the air conditioner often traces its root cause to exactly this measurement.

Filter selection interacts directly with static pressure. High-efficiency filters capture more particles but add resistance, and a filter that is too restrictive can negate the benefit of a well-designed duct system. Balancing filtration goals against static pressure budget is a design decision, not a purchase decision made in isolation.

Common Ductwork Design Mistakes

What Good Design Does

  • Keeps total external static pressure within the blower's rated range
  • Delivers the designed airflow to the farthest register
  • Balances supply and return volumes across the conditioned envelope
  • Uses sweeping transitions instead of abrupt elbows
  • Seals all joints in unconditioned space with mastic or approved tape
  • Sizes return grilles and filter areas to avoid starvation
  • Keeps branch velocities low near sleeping and living areas

What Repeatedly Goes Wrong

  • Oversized air handler connected to undersized trunk duct
  • Too many tight elbows routed around obstructions
  • Returns sized smaller than supplies, creating negative pressure
  • Flex duct installed with sharp bends or compressed sections
  • Leaky joints pulling attic or crawlspace air into the supply
  • Registers placed behind furniture or blocked by curtains
  • No balancing dampers, leaving far rooms permanently starved

Flex duct deserves special mention because it is common in residential retrofits and easy to install poorly. A flex run that is stretched tight and supported at proper intervals performs very differently from one that sags, compresses, or turns through a tight radius. The material is fine; the installation discipline is what determines whether the design intent survives.

Verifying the Design After Installation

Design documents only matter if the installed system matches them. A commissioning check after installation should confirm three things: the measured external static pressure, the airflow at each register, and the absence of significant leakage in unconditioned spaces.

If the installed system does not match the design, the fix belongs with the installer, not with the equipment. Replacing an air conditioner to compensate for a restrictive duct system is a common and avoidable mistake. Our guide to what to expect in the first week after AC installation covers the checks that should happen during that window.

Materials, Insulation, and Duct Sealing

Sheet metal remains the default material for trunks in many installations because it is rigid, durable, and easy to seal. Galvanized rectangular duct is common in basements and mechanical rooms. Fiberglass duct board is used in some residential systems for its combined insulation and acoustic properties, but it must be sealed and supported carefully to avoid air leaks and sagging.

Flexible duct is used extensively for branch runs because it is simple to route, but its internal corrugation adds friction compared with smooth metal. Manufacturer tables account for this, and the design equivalent length for flex is typically higher than for the same physical length of rigid duct. Compressing or bending flex tightly multiplies that penalty.

Insulation matters most where ducts pass through unconditioned attics, crawlspaces, or garages. Insufficient insulation causes condensation on cold surfaces in cooling season and heat loss in heating season. Sealing is equally important: mastic or approved foil tape at every joint, not just at the visible ends. A duct system that leaks into an attic is effectively delivering conditioned air to the outdoors.

Planning a Duct System or Upgrading an Existing One?

You now have the framework: size for the load, keep equivalent length and fittings low, protect static pressure, balance supply and return, and verify the installation with measurements. The curated selection below highlights duct components and related HVAC equipment across entry-level, mid-range, and premium tiers to support the plan you have in mind.

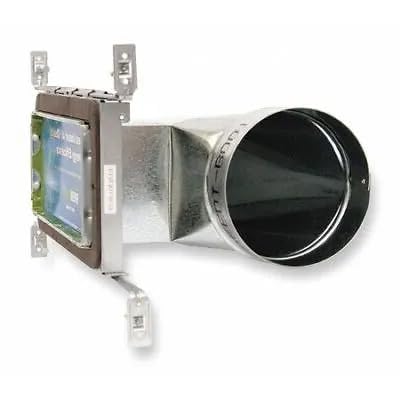

View Related Products

Frequently Asked Questions

What is the most important rule in ductwork design?

Keep total external static pressure low. Every fitting, bend, and length of duct adds resistance. A well-designed system stays within the air handler's rated static pressure so airflow reaches every register at the designed volume.

How do I size ductwork for a room?

Start with the room's required airflow in cubic feet per minute, derived from the heating and cooling load. Then select duct diameter or rectangular dimensions using a friction rate chart, typically around 0.1 inches of water per 100 feet, or a velocity method, keeping trunk and branch velocities within industry guidelines.

What is static pressure in ductwork?

Static pressure is the resistance the blower must overcome to move air through the duct system, filters, and coils. Measured in inches of water column, it is the single best diagnostic indicator of whether a duct system is restrictive or well-matched to the equipment.

Why is my far room not getting enough airflow?

The most common causes are undersized branch ducts, excessive equivalent length from too many fittings, leaking ducts in unconditioned space, or an unbalanced system where the trunk is too small for the total airflow. Manual balancing dampers and a static pressure test usually identify the culprit.

Should return ducts be the same size as supply ducts?

Return airflow should match supply airflow, but return ducts are often sized with lower velocity to reduce noise. In practice, return grilles and ducts are frequently sized slightly larger than supply equivalents because filter and grille resistance is higher on the return side.

When should I consider ductless instead of ducted?

If a home has no existing ductwork or the layout makes a central duct system impractical, a ductless approach avoids the design and installation complexity entirely. Our article on ductless air conditioning for older homes covers the trade-offs in more detail.
